| ITEM |
TRANSFER TYPE |
COMPRESSION TYPE |
| MOLDING METHOD |
Transfer Molding |
Compression Molding |
| APPEARANCE |
 |
 |
| TABLET SIZE |
Φ13㎜, Φ14㎜
Φ16㎜, Φ18㎜ |
Φ48㎜ |
38㎜ x 68㎜ x 7㎜
Φ48㎜ (15g, 18g, 20g) |
| TABLET WEIGHT TOLERANCE |
Φ13㎜, Φ14㎜ - ±0.3g |
Φ48㎜ - ±3.0g |
38㎜ x 68㎜ x 7㎜ - ±3.0g |
| Φ16㎜, Φ18㎜ - ±0.4g |
Φ48㎜ (15g, 18g, 20g) - ±3.0g |
| CURING TIME |
Slow |
Standard |
Fast |
Slow |
Standard |
Fast |
| COLOR |
White |
White |
| TABLET DENSITY |
1.2 ~ 1.5g/㎤ |
1.1 ~ 1.4g/㎤ |
| FLOW |
Spiral Flow |
20~40inch |
Disc Flow |
80~110㎜ |
|
| MOLD DENSITY |
1.5 ~ 1.7g/㎤ |
1.4 ~ 1.6g/㎤ |
| MOLDED SHRINKAGE |
0.7 ~ 1.2% |
0.9 ~ 1.2% |
|
 |

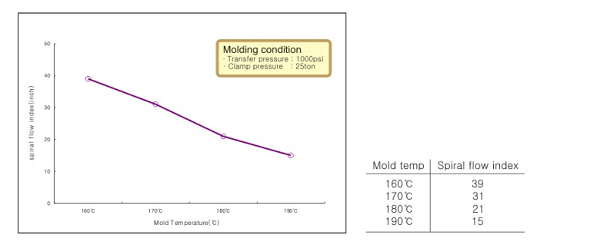

| * Graph 1. Spiral Flow Index/ Molding Temperature of Transfer Type |
 |

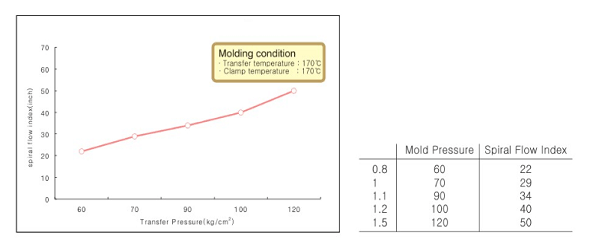

| * Graph 2. Spiral Flow Index/ Transfer Pressure of Transfer Type |
 |
: 제품소개 :
